♦ HALL angle: 180°
♦ Multi-speed regulation modes
♦ Maximum input voltage: 30V
|
♦ High efficient, slowly temperature rise and compact size
♦ Smooth torque output within speed range of 0-20000rpm
|
Indexes
Electrical indexes
| Driver parameters |
Minimum value |
Rated value
|
Maximum value
|
unit |
| Output current |
|
3 |
6 |
A |
| Input voltage |
12 |
24 |
30 |
VDC |
| Hall drive current |
- |
20 |
- |
mA |
| Hall signal voltage |
4.5 |
5 |
5.5 |
V |
| Applicable motor speed |
0 |
- |
20000 |
RPM |
Environmental indexes
| Environmental factors |
Environmental indexes |
| Use occasion |
Avoid dust, oil stain and corrosive gas |
| Operating temperature |
10℃~+50℃ |
| Environment humidity |
40-90%RH (no condensation) |
| Vibration |
5.9m/s2 Max |
| Storage temperature |
-20℃~+125℃ |
| Cooling mode |
Natural cooling or forced cooling
|

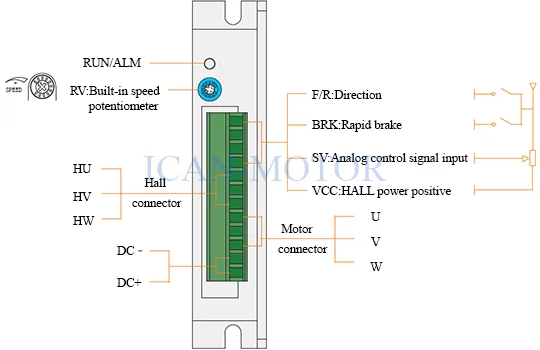

Driver interface and motor connection
|
Terminals
|
Function
|
| SV |
1.External potentiometer; 2.nput analog signal.
|
| F/R |
High level input the motor will rotate anticlockwise, low level input or when F/R and DR- are connected, the motor will rotates clockwise.
|
| BRK |
Brake stop control signal: The motor brake stops when a high level is added or port suspension; the motor runs when the low level is added or DC- and BRK are connected.
|
Function
Four Speed regulation modes
Bulit-in potentiometer RV
|
Rotate the RV knob clockwise,
the motor starts to run and accelerate.
Motor speed will decrease if anticlockwise.
When it gets to a limited position, the motor stops.
|
|

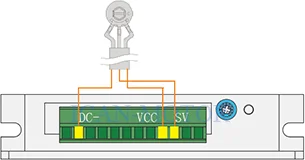

External potentiometer
|
Use a suitable potentiometer with a resistance value
of 10KΩ, connect middle terminal with SV terminal,
and the other two terminals are respectively connected
with VCC terminal and DC- terminal.
|
 |

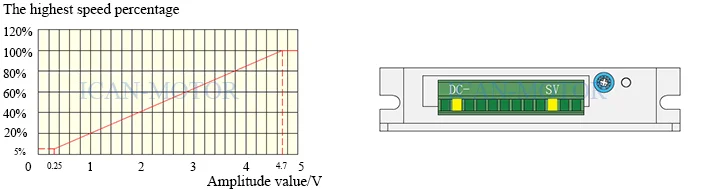

Input analog signal(0-5V)
|
Voltage and motor speed relational diagram(unloaded)
 |
Quick brake
|
BRK and DC- are connected in default, the motor
will rotate. When BRK and DC- are disconnected,
the motor will be quick brake.
|
 |
CW/CCW rotation
|
Connect F/R and DC-, the motor will rotate clockwise, disconnect it, the motor will rotate anticlockwise.
|
 |
