SILNIK MOTOR BRUSCHLESS BEZSZCZOTKOWY BLDC 69W 24V 0,22Nm
opis:
NOWY
BRUSCHLESS BLDC
silnik
typ: 57BLY-0730NBB
parametry:
- długość 68mm
- szerokość 57mm
- średnica kołnierza 38mm
- długość wału 20mm
- średnica wału 8mm
- otwory mocujące fi 5mm
parametry elektryczne:
- napięcie zasilania 24V
- prąd ciągły 2.9A
- moc 69W
- obroty znamionowe 3000U/min
- obroty bez obciążenia 4000U/min
- moment obrotowy ok. 0.22Nm
- wodoszczelność -konstrukcja otwarta
- czas pracy między serwisowej 20000h
do kontroli położenia wykorzystano trzy czujniki |Halla zasilanie 5V.
Quick Details
- Model Number: 57BLY-730NBB
- Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance
- Certification: CCC, CE, ROHS
- Type: Micro Motor
- Torque: 0.22Nm
- Construction: Permanent Magnet
- Commutation: Brushless
- Protect Feature: Explosion-proof
- Speed(RPM): 3000rpm
- Continuous Current(A): 2.7A
- Output Power: 70W
- Voltage(V): 24V
- Efficiency: IE 1
- Rated Voltage: 24V
- Motor type: DC Brushless 2 Phase
- Color: Black
- Application: Packing Machine
- Feature: Coreless Brushless Motor
- Power: 69W
- Motor Length: 69mm
- axial length: 22mm
- Shaft Diameter: 8mm
Product Description
Naming Rule
| 57 |
BLY |
07 |
30 |
NBB |
| Flange size |
Flange shape |
Output power |
Revolving speed |
Voltage |
| |
BLY: Round |
Output power=value*10 |
10:1000 |
NBB:DC24V |
| |
BLF: Square |
|
20:2000 |
LBB: DC48V
|
| |
|
|
30:3000 |
HBB: AC220V |
Quick Details
Voltage: DC24V
Flange Size: 57mm
Output power : 69~125W
range of speed regulation: ≤1500rpm/≤3500rpm
Adaptive Driver:BLD120A,BLD300B |
Parameter specification
| Model No |
Voltage
(V) |
Output
power(W) |
Rated Revolving
Speed (rpm) |
Rated Torque
(Nm) |
Length
L(mm) |
axial length
LA(mm) |
Shaft Diameter
LB(mm) |
| 57BLY-0730NBB |
24 |
69 |
1500 |
0.22 |
66.5 |
22 |
8 |
| 57BLY-1030NBB |
24 |
103 |
3000 |
0.33 |
87 |
22 |
8 |
| 57BLY-1230NBB |
24 |
125 |
3000
|
0.44 |
106.5 |
22 |
8 |

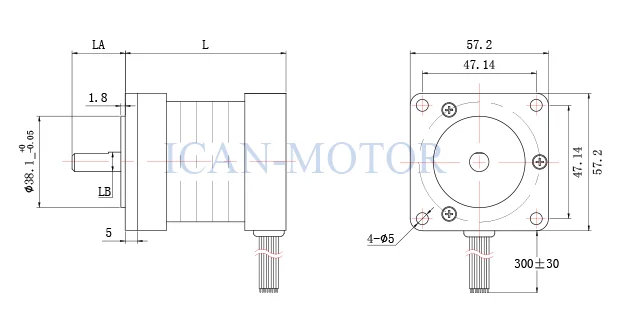

Overall dimension
| Model No |
Line U |
Line V |
Line W |
Line HU |
Line HV |
Line HW |
Line REF- |
Line REF+ |
| 57BLY-0730NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
| 57BLY-1030NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
| 57BLY-1230NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
Torque Curve

|
   |
