parametry :
- napięcie zasilania 15-50V
- prąd ciągły do 2-7A /48V
- do silników o mocy do 300W
- obroty - do 4000rpm
umożliwia:
-regulację prędkości -sv
-zmianę kierunku obrotów -F/R
-wejście enable - EN
-wejście hamulca - BRK
-wyjście alarm ALM
zadawanie prędkości na 3 sposoby
-
wewnętrznym potencjometrem
-
zewnętrznym potencjometrem
- sygnałem PWM
-zabezpieczenia
- nad prądowe
- nad napięciowe
-możliwość ograniczenia prądu w zakresie 2-7A
-regulacja czasu przyspieszenia oraz zwalniania
Product Description
Features
• Peak current setting
• Acc/Dcc time setting
• Wide speed control range of 150-4000rpm
• Four Speed regulation methods
• Easy operation
• PID open/closed loop setting
Electrical indexes
Driver parameters |
Minimum value |
Rated value |
Maximum value |
Input voltage DC (V)
|
15 |
24 |
48 |
Output current (A)
|
0 |
5 |
7 |
Applicable motor speed(rpm) |
0 |
|
4000 |
Hall signal voltage(V) |
- |
- |
5 |
Input analog voltage(V) |
- |
- |
5 |
External speed regulation potentiometer(KΩ) |
- |
10 |
- |
Driver Interface and motor connection

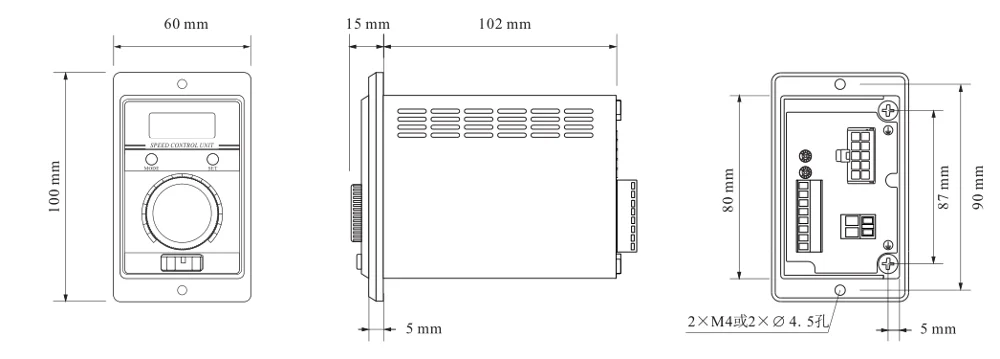

External dimension(mm)

Functions description

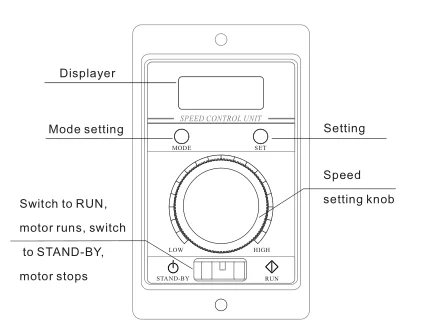

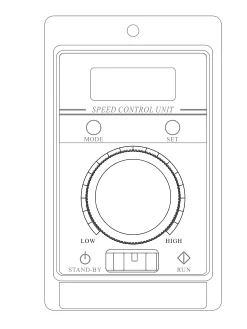

• Motor start and speed display

• Motor pole-pairs selection
• PID open/closed loop controlling mode selection
• ACC/DCC time setting

• Peak current setting

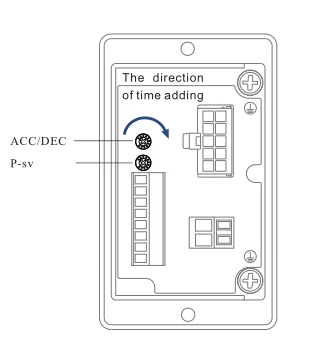

Equipped with a motor protection function, the driver provides options to set desired current number in the P-sv knob. Please note that the rate of change is 10% ±

• Direction control
• Motor starts and stops/brake
• Five Speed setting methods

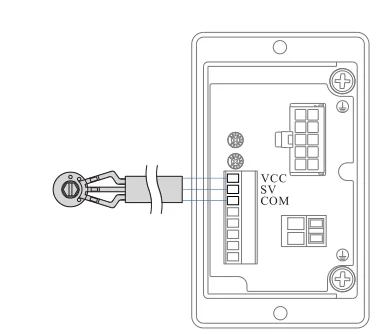

A. Speed knob B. Speed setting via external potentiometer

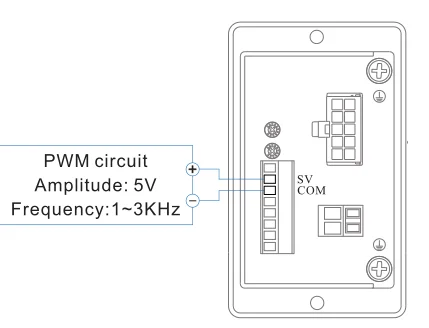

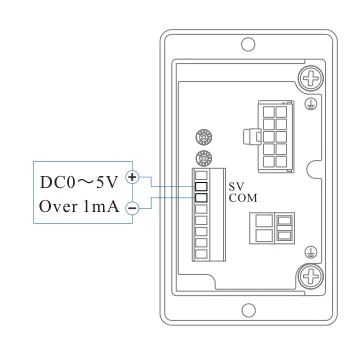

C. Speed setting via external analog signal 0~5V D. PWM speed setting
