Product Description
Features
|
♦ HALL angle: 180°
♦ SPEED/ALARM signal output(O.C.)
|
♦ Wide speed control range of 150-20000rpm
♦ High efficient, slowly temperature rise and compact size
♦ Strong over-current, over-voltage, undervoltage self-protection
|
Indexes
Electrical indexes
| Driver parameters |
Minimum value |
Rated value
|
Maximum value
|
unit |
| Output current |
1 |
15 |
25 |
A |
| Input voltage |
18 |
48 |
50 |
VDC |
| Hall drive current |
- |
20 |
- |
mA |
| Hall signal voltage |
4.5 |
5 |
5.5 |
V |
| Applicable motor speed |
0 |
- |
20000 |
RPM |
Environmental indexes
| Environmental factors |
Environmental indexes |
| Use occasion |
Avoid dust, oil stain and corrosive gas |
| Operating temperature |
10℃~+50℃ |
| Environment humidity |
40-90%RH (no condensation) |
| Vibration |
5.9m/s2 Max |
| Storage temperature |
-20℃~+125℃ |
| Cooling mode |
Natural cooling or forced cooling
|
Driver interface and motor connection
|
Terminals
|
Function
|
| SV |
1.External potentiometer; 2.nput analog signal; 3.PWM pulse width.
|
| COM |
Common port (0V reference level)
|
| F/R |
Motor rotation direction control(CW/CCW). High level input the motor will rotates clockwise, low level input or when F/R and COM are short circuit, the motor rotate anticlockwise
|
| EN |
High level input the motor stops, low level input or when EN and COM are short circuit, the motor runs
|
| BRK |
The motor brake stops when a high level is added or port suspension; the motor runs when the low level is added or EN and BRK are connected
|
|
ALM
|
The default output signal is 5V under normal circumstances; the level is 0V when malfunction occurs
|
| SPEED |
Output pulse frequency signal(OC). The motor speed can be calculated through SPEED.
|
Function
Four Speed regulation modes
Bulit-in potentiometer RV
|
Rotate the RV knob clockwise until a “click” sound,
the motor starts to run and accelerate.
Motor speed will decrease if anticlockwise.
When it gets to a limited position, the motor stops.
|
 |
External potentiometer
|
Use a suitable potentiometer with a resistance value
of 10KΩ, connect middle terminal with SV terminal,
and the other two terminals are respectively connected
with VCC terminal and COM terminal.
|
 |
Input analog signal(0-5V)
|
Voltage and motor speed relational diagram(unloaded)
 |

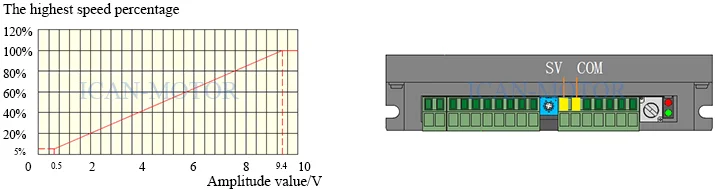

Input analog signal(0-10V)
|
Voltage and motor speed relational diagram(unloaded)
 |
Pulse Width Modulation
|
Duty radio and motor speed relatoinal diagram (unloaded)
 |
Quick brake
|
BRK and COM are connected in default, the motor
will rotate. When BRK and COM are disconnected,
the motor will be quick brake. To control the brake
and the rotation of the motor, a switch can be added
between BRK and COM.
|
 |
CW/CCW rotation
|
Connect F/R and COM, the motor will rotate
anticlockwise, disconnect it, the motor will rotate
clockwise.To control the direction of the motor,
a switch can be added between F/R and COM.
|
 |
Peaking current setting
|
Equipped with a motor protection function, the driver provides options to set desired current number in the P-sv knob to avoid over-current for motor. Please note that the random error is ±10% . The setting should be matched with motor rated current.
|
|
