SILNIK MOTOR BRUSHLESS BEZSZCZOTKOWY BLDC 240W 48V 0.75Nm
opis:
BEZ SZCZOTKOWY
BRUSHLESS
BLDC
SILNIK
Typ: 60BLF-2430LBB
parametry:
- długość 124mm
- szerokość 60mm
- średnica kołnierza 50mm
- długość wału 27mm
- średnica wału 14mm
- waga 1.6kg
parametry elektryczne:
- napięcie zasilania 48V
- prąd ciągły 5A
- moc 240W
- obroty znamionowe 3000U/min
- obroty bez obciążenia 4000U/min
- moment obrotowy ok. 0.75Nm
-
do kontroli położenia wykorzystano trzy czujniki |Halla zasilanie 5V.
Quick Details
- Model Number: 60BLF-2430LBB
- Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance
- Certification: CCC, CE, ROHS
- Type: Micro Motor
- Torque: 0.75Nm
- Construction: Permanent Magnet
- Commutation: Brushless
- Protect Feature: Explosion-proof
- Speed(RPM): 3000rpm
- Continuous Current(A): 5.0A
- Output Power: 240W
- Voltage(V):48 V
- Efficiency: IE 1
- Rated Voltage: 48V
- Motor type: DC Brushless 2 Phase
- Color: Black
- Application: Packing Machine
- Feature: High Efficiency
- Power: 240W
- Motor Length: 120mm
- Axial length: 27mm
- Shaft Diameter: 14mm
easy use high torque 240W brushless dc motor
Product Description
Naming Rule
| 60 |
BLF |
24 |
30 |
NBB |
| Flange size |
Flange shape |
Output power |
Revolving speed |
Voltage |
| |
BLY: Round |
Output power=value*10 |
10:1000 |
NBB:DC24V |
| |
BLF: Square |
|
20:2000 |
LBB: DC48V
|
| |
|
|
30:3000 |
HBB: AC220V |
Quick Details
Voltage: DC24V/DC48V
Flange Size: 60mm
Output power : 80~240W
range of speed regulation: ≤1500rpm/≤3500rpm
Adaptive Driver: BLD300B |
Parameter specification
| Model No |
Voltage
(V) |
Output
power(W) |
Rated Revolving
Speed (rpm) |
Rated Torque
(Nm) |
Length
L(mm) |
axial length
LA(mm) |
Shaft Diameter
LB(mm) |
| 60BLF-0815NBB |
24 |
80 |
1500 |
0.5 |
100 |
31 |
8 |
| 60BLF-0830NBB |
24 |
80 |
3000 |
0.25 |
78 |
31 |
8 |
| 60BLF-1630NBB |
24 |
160 |
3000
|
0.5 |
100 |
30 |
8 |
| 60BLF-2430NBB |
48 |
240 |
3000 |
0.75 |
120 |
31 |
14 |

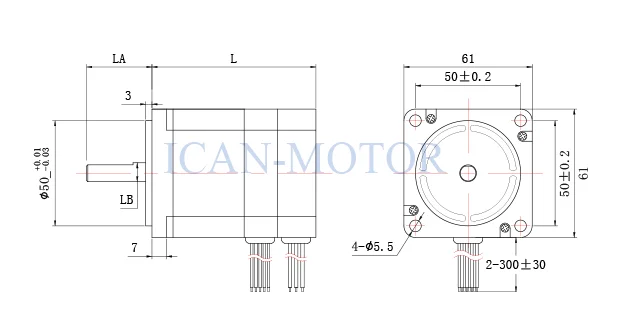

Overall dimension
| Model No |
Line U |
Line V |
Line W |
Line HU |
Line HV |
Line HW |
Line REF- |
Line REF+ |
| 60BLF-0815NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
| 60BLF-0830NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
| 60BLF-1630NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
| 60BLF-2430NBB |
Yellow
(thick) |
Green
(thick) |
Blue
(thick) |
Yellow
(thin) |
Green
(thin) |
Blue
(thin) |
Black
(thin) |
Red
(thin) |
Torque Curve

|
   |
